Chroma 19020-4: The Ultimate Hipot Tester for Comprehensive Electrical Safety Testing

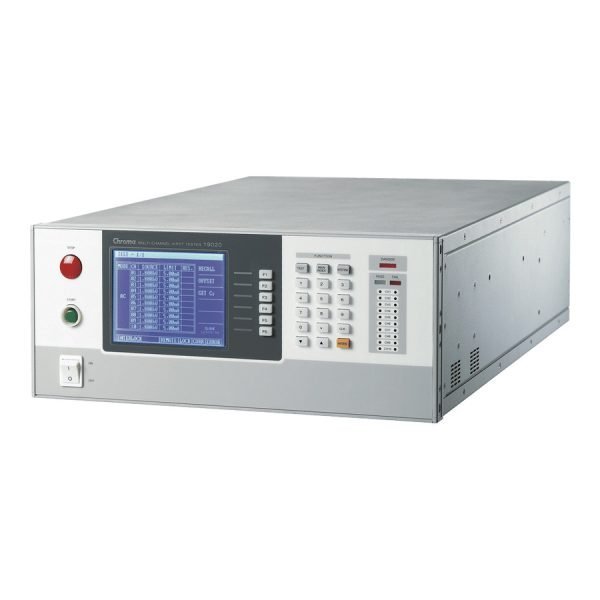

Features and Specifications: Chroma 19020-4 Hipot Tester, 4 Channel, 5 kV AC/10 mA, 6 kV DC/5 mA, ACWV/DCWV/IR, 19020 Series Product Overview: The Chroma 19020-4 Hipot Tester is a versatile and powerful testing solution designed to evaluate the electrical safety and insulation integrity of various products. With its 4-channel configuration, it enables simultaneous testing of multiple devices, maximizing efficiency and reducing test time. Features: Wide Voltage Range: AC: 5 kV / 10 mA; DC: 6 kV / 5 mA Multiple Test Modes: AC Withstand Voltage (ACWV), DC Withstand Voltage (DCWV), Insulation Resistance (IR) 4-Channel Design: Allows for parallel testing of up to 4 devices High Accuracy and Resolution: Ensures precise and reliable measurements Automatic Discharge Function: Safely discharges DUT after testing Intuitive User Interface: Simplifies operation and reduces setup time Data Logging and Analysis: Captures and stores test results for further analysis Safety Features: Meets IEC 61010-1 and IEC 61010-2-030 safety standards Specifications: Voltage Range: AC: 0 to 5 kV; DC: 0 to 6 kV Current Range: AC: 0 to 10 mA; DC: 0 to 5 mA Insulation Resistance Range: 0 to 100 GΩ Test Time: 0.1 to 999.9 seconds Display: 4.3-inch TFT LCD Dimensions: 430 x 330 x 132 mm Weight: 10 kg What’s in the Box: Chroma 19020-4 Hipot Tester Power cord Test leads User manual Benefits: Enhanced Safety: Ensures compliance with electrical safety standards and protects users from potential hazards. Increased Efficiency: Parallel testing capabilities reduce test time and improve productivity. Reliable Results: High accuracy and resolution provide confidence in test data. Versatile Applications: Suitable for testing a wide range of electrical products, including power supplies, transformers, and motors. User-Friendly Operation: Intuitive interface and automatic discharge function simplify testing procedures. * Comprehensive Data Analysis: Data logging and analysis capabilities enable thorough evaluation of test results.
