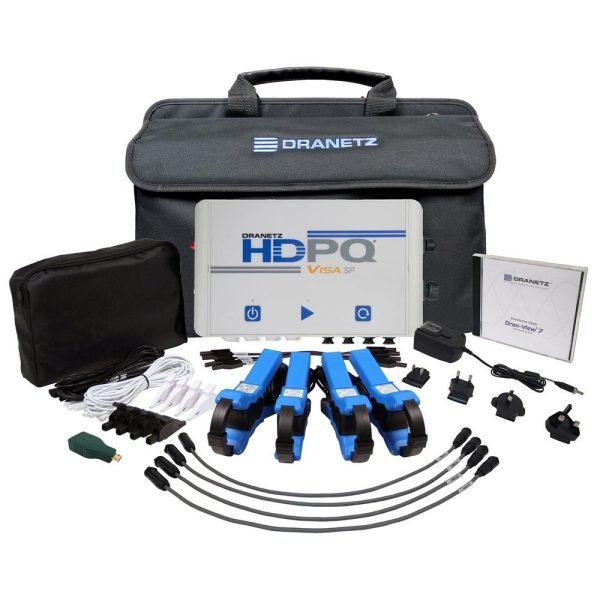

Dranetz HDPQ-SPVA500PKG

The HDPQ Visa instruments go well beyond the requirements of the PQ standards by including transient capture capabilities for voltage and current, such as: transients to 32 microseconds, peak sample transients, and advanced waveshape change transients that can identify changes from cycle to cycle. Safe & Rugged IP65 Enclosure Arc Flash Safety UL/cUL listed and CE approved Automatic circuit detection and feedback on proper connection of the instrument Precision 16-25Hz, 42.5-69Hz Capabilities High Definition PQ & Energy Monitoring 1000Vrms, AC/DC, 512 samples/cycle High Speed Digitized Transients to 1us – to 2000Vpk Eight channels, 4 voltage & 4 current AnswerModules – Sag directivity PF capacitor identification motor– automatic event categorization Advanced PQ – IEC 61000-4-30 Class A & IEEE 1159 compliant Harmonics – IEC 61000-4-7, IEEE 519 Transient capabilities – V & I Waveshape triggers Beyond standards IEE 1459 Advanced Power Measurements 10,000 cycle pre/post trigger buffer EN 50160 Ed 3 > Communications: Ethernet, USB, Bluetooth (opt) VNC for full remote control Apple & Android apps with real time metering and alarm Dashboard Enhanced Dranetz tech support > User Interface Automatic setups – PQ, D&E > Productivity Mini-report – Screen snapshots, XML file. Easily uploaded and emailed Power quality & energy Dashboards for real time alarming Bigger display for more productive local analysis AnswerModules – automatic event categorization Dran-View 7 Data analysis and reporting Rescue kit Post processing Data Downloading VNC Control
