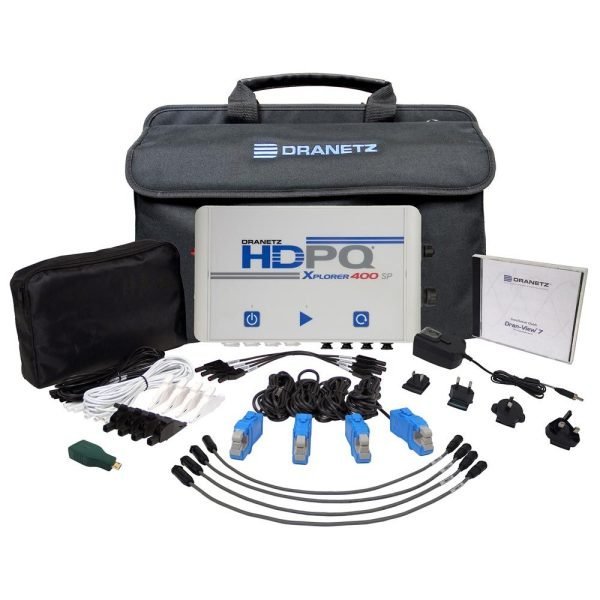

Dranetz HDPQ-SPX4A550PKG

The Dranetz HDPQ® Xplorer (portable) and Dranetz HDPQ Xplorer SP (IP65) power quality analyzers represent the top of the line in the Dranetz HDPQ family of products and offers you simply the best PQ monitoring available from Dranetz, or any other manufacturer! The Dranetz HDPQ Xplorer family includes all of the features of the Dranetz HDPQ Visa and Guide power quality instruments, but also adds high speed transient capture capabilities, so you’ll never miss an event. High Definition PQ & Energy Monitoring – 1000Vrms, AC/DC, 512 samples/cycle High Speed Digitized Transients to 1us – 10 to 2000Vpk 50/60Hz and 400Hz operating modes Eight channels, 4 voltage & 4 current AnswerModules – Sag directivity, PF capacitor identification, motor – automatic event categorization Advanced PQ – IEC 61000-4-30 Class A & IEEE 1159 compliant Harmonics – IEC 61000-4-7, IEEE 519 (2014) Transient capabilities – V & I – waveshape triggers, high speed. Well beyond standards requirements IEEE 1459 Advanced Power Measurements 10,000 cycle pre/post trigger buffer EN 50160 Ed 3 > Communications: Ethernet, Wi-Fi, USB, Bluetooth VNC for full remote control from Dran-View 7 or a 3rd party App Apple & Android apps with real time metering and alarm > Safe & Rugged Arc Flash Safety UL/cUL listed and CE approved IP65 enclosure for harsh and outdoor environments Automatic circuit detection and feedback on proper connection of the instrument User Interface > User Interface Automatic setups – PQ, Demand and Energy Tablet-like GUI that is icon driven, has taskbar shortcuts, and a Dashboard > Productivity Mini-report – Screen snapshots, XML file. Easily uploaded and emailed PQ & energy Dashboards for real time alarming AnswerModules – automatic event categorization Dran-View 7 power quality analysis software Rescue kit – Part of Dran-View 7. Correct problems with wiring, CT orientation, time errors and more Post processing – Part of Dran-View 7. Compute harmonics and other parameters from the waveforms recorded by the instrument > Applications Monitor and survey 400Hz naval, aviation, military, and other power systems Power quality surveys and diagnostics Power surveys Motor testing & diagnosis Fault recording Transient recording Inrush testing for transformers, motors, etc. Energy management & load surveys Data logging Harmonic analysis Advanced load distortion and imbalance Alternative energy production – Solar, Wind – Panel strings, batteries, inverters, grid interconnect, forward & reverse energy Compliance testing Flicker testing Capacitor testing Outdoor and harsh monitoring environments including those that require an IP65 enclosure
