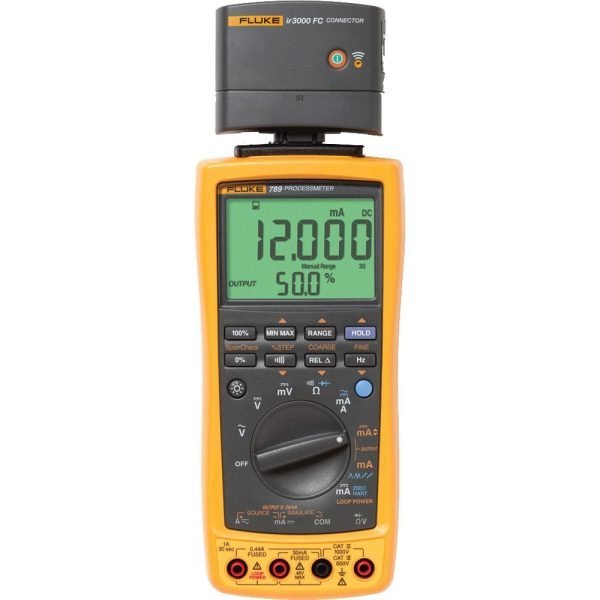

Fluke 789/IR3000

Bundle Highlights Use the Fluke-789 ProcessMeter with the Fluke Connects smart phone application to log measurements to your smart phone Remotely view changing sourced 4-20 mA signals from the Fluke-789 with the Smart phone App and compare to the control system HMI (Human Machine Interface display) > Fluke 789 Features 24 V loop power supply HART mode setting with loop power (adds 250 ohm resistor) 100% larger dual display 1200 ohm drive capability on mA source Enhanced backlight with two brightness settings Improved battery power with four AA batteries 0-100% mA Span Check buttons to toggle between 4 and 20 mA Infrared I/O serial port compatible with FlukeView Forms V 2.1 Software (available Feb. 2003) 5 V dc measurement capability on the 4 V dc range for precise 1-5 V measurements Externally accessible fuses for easy replacement DMM designed to meet 1000 V IEC 1010 Cat III standards Precision 1000 V, 440 mA digital multimeter Measure ac and dc volts AC and dc voltage accuracy: 0.05 % dc current accuracy, 1 uA resolution to 30 mA Simultaneous mA and % of scale readout True-rms ac voltage measurement Frequency measurement to 20 kHz Min/Max/Average/Hold/Relative modes Diode Test and Continuity Beeper 20 mA dc current source / loop calibrator / simulator Simultaneous mA and % of scale readout Manual Step (100 %, 25 %, Coarse, Fine) plus Auto Step and Auto Ramp Externally accessible battery for easy battery changes V overload protection on V, ohms, frequency, mA (backed-up by 440 mA 1000 V fuse) Process Meter > Fluke 789 Includes TL71 Premium Test Lead Set AC72 Alligator Clips Four AA alkaline batteries (installed) Users Manual Quick Reference Guide > Fluke ir3000FC Features Connect your Fluke test tool with the ir3000 FC connector and get all the benefits of the Fluke Connect™ app. Fluke Connect ir3000 FC Connector allows you to wirelessly transfer data from your existing Fluke Tools to your smart phone. Fits over the IR port of your existing Fluke Tools Upgradeable by USB Immediately enables you to graph, save and share the tools reading with your team from your smart phone
