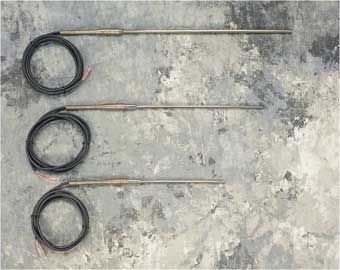

Fluke Calibration 5627A-9-B

Vibration and shock resistant 3/4-inch bend radius for increased durability Resistance: Nominal 100 Ω Temperature Coefficient: 0.00385Ω/Ω/ °C nominal Temperature Range: -200 °C to 420 °C (5627-6 and 5627-9 to 300 °C, transition and cable temperature: 0 °C to 150 °C) Drift Rate: ±0.13 °C at 0 °C after 1000 hours at 400 °C Sheath Material: 316 Stainless Steel Leads: Teflon™-insulated, nickel-plated stranded copper, 22 AWG Termination: Bare Wire Time Constant: Four seconds maximum for 63.2 %Response to step change in water moving at 3 fps. Bending Radius: Sheath may be ordered with a bend on a minimum radius of 19 mm (3/4 in) except for 50 mm (2 in) area of sheath near tip. Immersion: At least 100 mm (4 in) recommended Accuracy: (includes calibration uncertainty and short-term stability) ±0.050 °C at -196 °C ±0.050 °C at 0 °C ±0.051 °C at 200 °C ±0.055 °C at 420 °C Size: 9 in L x 3/16 in Dia. > Each Unit Includes Accredited Calibration
