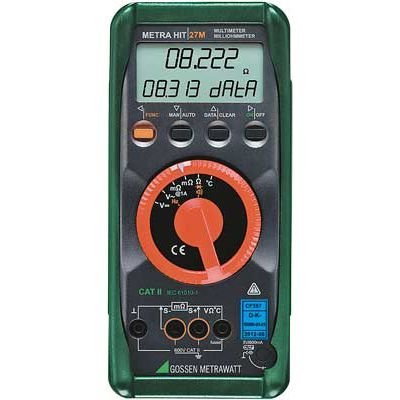

Gossen Metrawatt METRAHIT 27M

The MetraHit 27M is a rugged, reliable and compact milliohmmeter, multimeter and a temperature measuring instrument too. It is very well suited for on-site service, as well as for a wide variety of laboratory tasks. Applications apart from general low-ohmig measurements: measuring low value contact resistances at welding seams and riveted joints determination of low-resistance transitions at outer skins of aercraft (lightning protection, wicktest), and for general low-resistance measurements > Milliohmmeter: 3.000 mOhm to 300.00 mOhm with 1 A measuring current and 30.00 mOhm to 30.00 Ohm with 200 mA measuring current Kelvin connection (4-wire measurement) Resistance measurement from 300 Ohm to 30 MOhm Voltage measurement from 3 to 600 VDC and 3 to 600 VAC with ±30,000 digits Frequency measurement from 300 Hz to 3 kHz DATA hold memory for up to 1200 measured values Continuity and diode testing Overload protection DAkkS calibration certificate as standard feature > > Each Unit Includes 1 GH18 protective rubber cover with carrying strap 3 size AA NiMH storage batteries 1 KS17-S measurement cable set 1 abbreviated operating instructions 1 operating instructions D/GB/F 1 DAkkS calibration certificate
