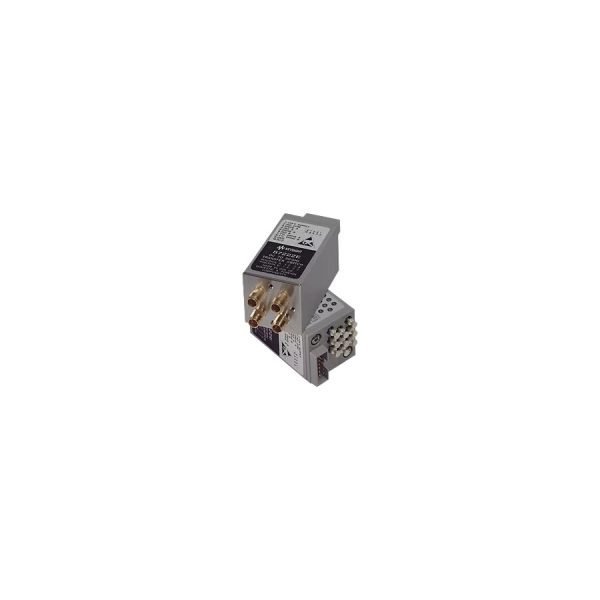

Keysight 87222E/161: 50 GHz Coaxial Transfer Switch with Latching and 10P DIP

Keysight 87222E/161 Coaxial Transfer Switch, 50 GHz, 4 Port Xfer, Latching, 10P DIP, 87222x Series Product Overview The Keysight 87222E/161 Coaxial Transfer Switch is a high-performance, 4-port transfer switch designed for use in a wide range of applications, including test and measurement, communications, and aerospace. The switch features a frequency range of up to 50 GHz, a low insertion loss of 0.5 dB, and a high isolation of 60 dB. The switch is also latching, which means that it will maintain its state even when power is removed. Features and Specifications Frequency range: DC to 50 GHz Insertion loss: 0.5 dB typical Isolation: 60 dB typical VSWR: 1.5:1 typical Power handling: 200 mW Switching speed: 100 ns Latching: Yes Control: 10P DIP Package: 10P DIP Benefits High performance: The switch’s high frequency range, low insertion loss, and high isolation make it ideal for use in demanding applications. Latching: The switch’s latching feature ensures that it will maintain its state even when power is removed, making it ideal for use in applications where reliability is critical. Compact size: The switch’s compact size makes it easy to integrate into a variety of applications. Value The Keysight 87222E/161 Coaxial Transfer Switch offers a number of benefits that make it a valuable asset for a wide range of applications. The switch’s high performance, latching feature, and compact size make it an ideal choice for applications where reliability, performance, and space are critical.
