Keysight DP0013A: Precision Differential Active Probe for High-Speed Signal Analysis

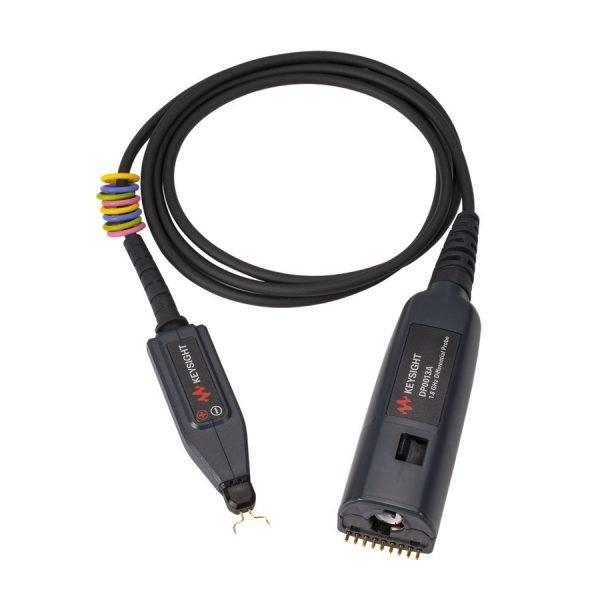

Features and Specifications: Keysight DP0013A Differential Active Probe, 1.7 GHz, 42 V, 1.7Mohm 1.5 pF, DP001xA Series Product Overview: The Keysight DP0013A Differential Active Probe is a high-performance probe designed for accurate and reliable measurements in high-speed differential applications. With its wide bandwidth of 1.7 GHz, high input impedance of 1.7 Mohm, and low input capacitance of 1.5 pF, the DP0013A provides exceptional signal fidelity and minimizes loading effects on the circuit under test. Features: Bandwidth: 1.7 GHz Input Impedance: 1.7 Mohm Input Capacitance: 1.5 pF Maximum Input Voltage: 42 V Differential and Single-Ended Measurements AutoProbe Interface for Automatic Probe Setup Compact and Lightweight Design Specifications: Bandwidth: 1.7 GHz (-3 dB) Input Impedance: 1.7 Mohm ±2% || 1.5 pF ±5% Maximum Input Voltage: 42 V (DC + peak AC) Common Mode Rejection Ratio (CMRR): >60 dB at 100 MHz Differential Gain Accuracy: ±1% Differential Phase Accuracy: ±1° Rise Time: 250 ps Fall Time: 250 ps Probe Tip Resistance: 100 kΩ Probe Tip Capacitance: 1 pF What’s in the Box: DP0013A Differential Active Probe Ground Lead Probe Tip Accessories User Manual Benefits: Accurate and reliable measurements in high-speed differential applications Wide bandwidth and high input impedance minimize loading effects Differential and single-ended measurements provide versatility AutoProbe Interface simplifies probe setup Compact and lightweight design for easy handling Value to the Customer: The Keysight DP0013A Differential Active Probe is an essential tool for engineers and technicians working with high-speed differential signals. Its exceptional performance and ease of use make it an ideal choice for a wide range of applications, including: Debugging and troubleshooting high-speed circuits Characterizing differential signal integrity Measuring differential noise and jitter Testing differential amplifiers and other components
