Keysight N2791A: High-Voltage Differential Probe for Precision Measurements

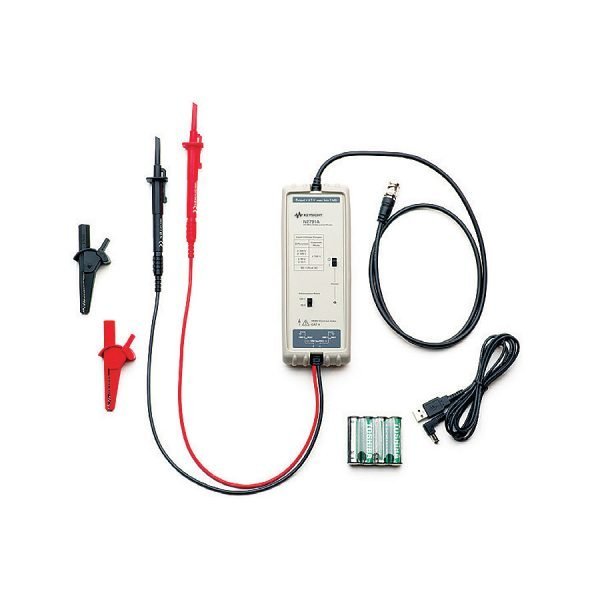

Keysight N2791A High-Voltage Differential Probe, 25 MHz, 700 V, 10:1/100:1, BNC Product Overview The Keysight N2791A High-Voltage Differential Probe is a high-performance probe designed for measuring high-voltage differential signals. It offers a wide bandwidth of 25 MHz, a high input voltage range of ±700 V, and a selectable attenuation ratio of 10:1 or 100:1. The probe is ideal for use in a variety of applications, including power electronics, automotive, and industrial. Features and Specifications Bandwidth: 25 MHz Input voltage range: ±700 V Attenuation ratio: 10:1 or 100:1 Input impedance: 10 MΩ || 10 pF Common mode rejection ratio: >100 dB at 50 Hz Differential mode rejection ratio: >60 dB at 25 MHz Rise time: <14 ns Fall time: <14 ns Overvoltage protection: ±1400 V Dimensions: 200 mm x 45 mm x 25 mm Weight: 250 g What’s in the Box Keysight N2791A High-Voltage Differential Probe BNC adapter Ground lead User manual Benefits High bandwidth and input voltage range for measuring high-voltage differential signals Selectable attenuation ratio for added flexibility High common mode rejection ratio for accurate measurements in noisy environments Differential mode rejection ratio for isolating differential signals from common mode noise Fast rise and fall times for capturing fast transients Overvoltage protection for added safety Compact and lightweight design for easy portability Value The Keysight N2791A High-Voltage Differential Probe is a valuable tool for engineers and technicians who need to measure high-voltage differential signals. It offers a combination of high performance, versatility, and safety, making it an ideal choice for a variety of applications.
