Keysight U942xA/B/C Series: High-Performance Solid State FET Switch for Demanding RF Applications

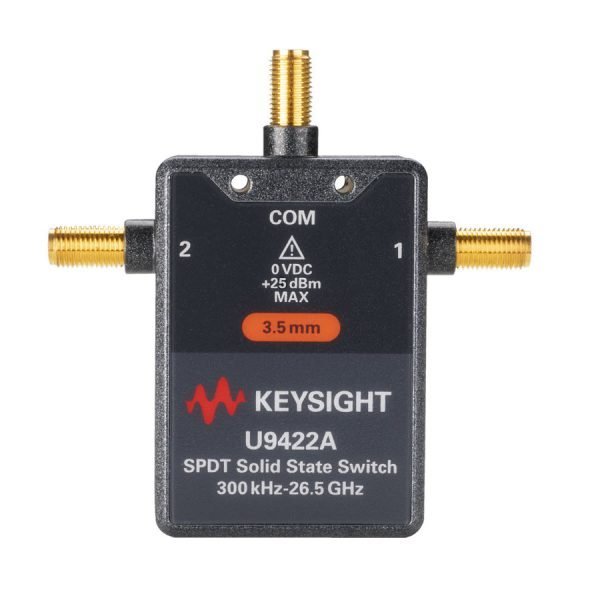

Features and Specifications: Keysight U9422A/001/101 Solid State FET Switch, 300 kHz-26.5 GHz, SPDT, Solder Wire, U942xA/B/C Series Product Overview: The Keysight U9422A/001/101 is a high-performance solid-state FET switch designed for applications requiring high isolation, low insertion loss, and fast switching speeds. It operates from 300 kHz to 26.5 GHz and features a single-pole double-throw (SPDT) configuration. The switch is packaged in a compact, solder wire mountable housing, making it ideal for use in space-constrained environments. Features: Frequency range: 300 kHz to 26.5 GHz Insertion loss: <1.5 dB (typical) Isolation: >50 dB (typical) Switching speed: <10 ns Power handling: +27 dBm (CW) Control voltage: +3.3 V to +5 V Solder wire mountable housing Benefits: High isolation and low insertion loss for improved signal integrity Fast switching speeds for high-speed applications Compact housing for space-constrained environments Solder wire mountable for easy installation Value to the Customer: The Keysight U9422A/001/101 Solid State FET Switch offers a combination of high performance and compact design, making it an ideal choice for a wide range of applications, including: Test and measurement Communications Aerospace and defense Semiconductor testing Medical imaging
