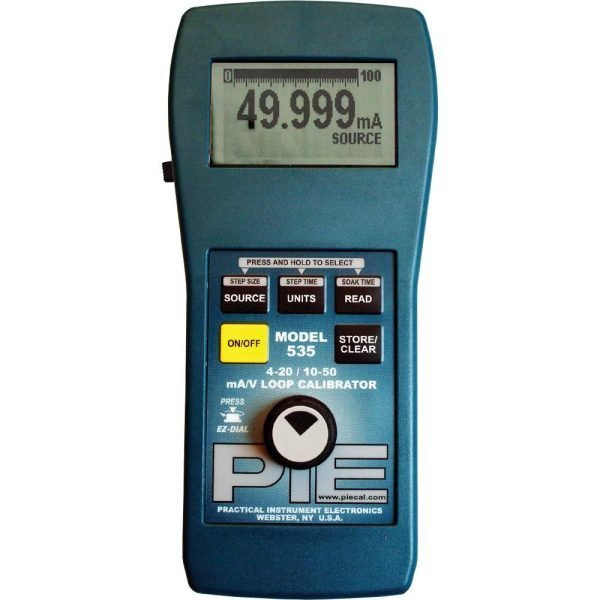

PIE 535

True ± 0.025% of reading Read and Source 0.000 to 50.000 mA Display current or -25.00 to 125.00% of 4-20mA or 10-50mA Bar graph displays % of 4-20mA or 10-50 mA Simulate 2-Wire Transmitters Power 2-Wire Transmitters and Read 0.000-50.000mA Read 0.00 to ± 30.00 VDC with 4X over range ability Source 0.000 to 24.000 VDC with up to 20mA output Direct Calibration 1.000V to 5.000V Loop Compliance Voltage ≥ 43 Volts Auto Step or Ramp with HIGH accuracy and repeatability Selectable step sizes, time in-between steps & soak time Stop watch like EZ-Check™ switch Full 5 Digit Display Fuseless protection from accidental connection to 240 volts AC/DC Rugged handheld enclosure with optional lanyard and Velcro® hand strap Uses 4 AA alkaline batteries Superior battery life of 40 hours under typical continuous usage Easy access to battery compartment Power up loops with up to 42V with internal 535 power supply to support older instrumentation requiring higher power supply voltage
