RIGOL RP1100D: Unveil High-Voltage Phenomena with Precision and Speed

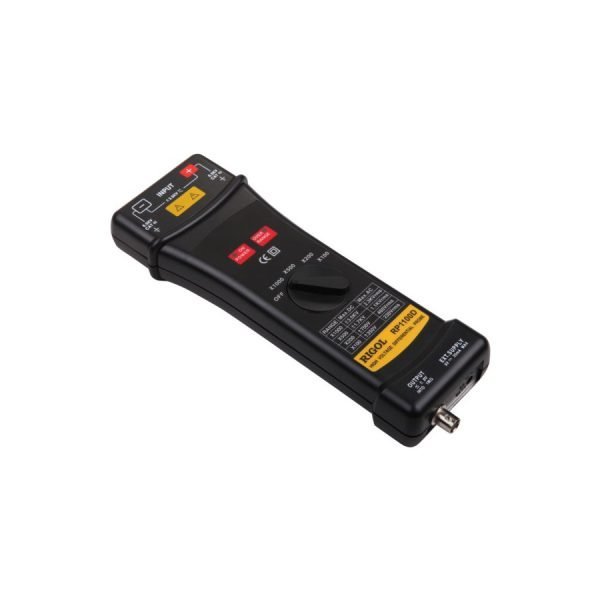

Features and Specifications: RIGOL RP1100D High Voltage Differential Probe, DC-100 MHz, 7000 Vpp Product Overview: The RIGOL RP1100D is a high-performance differential probe designed for precise voltage measurements in high-voltage applications. With a wide bandwidth of DC-100 MHz and a maximum input voltage of 7000 Vpp, it enables accurate and reliable measurements in demanding environments. Features: High Voltage Measurement: Capable of measuring voltages up to 7000 Vpp, making it ideal for power electronics, automotive, and industrial applications. Wide Bandwidth: DC-100 MHz bandwidth allows for accurate capture of fast-changing signals. Differential Measurement: Measures the voltage difference between two points, eliminating common-mode noise and ground loops. High Input Impedance: 10 MΩ input impedance minimizes loading effects on the circuit under test. Low Noise: Excellent signal-to-noise ratio ensures accurate measurements even in noisy environments. Compact and Portable: Lightweight and compact design for easy handling and portability. Specifications: Bandwidth: DC-100 MHz Maximum Input Voltage: 7000 Vpp Input Impedance: 10 MΩ Common Mode Rejection Ratio (CMRR): >100 dB Probe Attenuation: 100:1 Input Capacitance: 10 pF Dimensions: 150 x 70 x 30 mm Weight: 250 g What’s in the Box: RIGOL RP1100D High Voltage Differential Probe Ground Lead Probe Tip User Manual Benefits: Accurate and Reliable Measurements: High voltage capability and wide bandwidth ensure precise measurements in demanding applications. Reduced Noise and Interference: Differential measurement and high CMRR minimize noise and ground loop effects. Versatile and Portable: Compact design and wide voltage range make it suitable for various applications. Enhanced Productivity: Fast and accurate measurements improve efficiency and reduce troubleshooting time. Value to the Customer: The RIGOL RP1100D High Voltage Differential Probe empowers engineers and technicians with a powerful tool for high-voltage measurements. Its exceptional performance, versatility, and ease of use make it an invaluable asset for: Power electronics design and testing Automotive electrical system diagnostics Industrial equipment maintenance Research and development in high-voltage applications
