Siglent SAP2500: High-Performance Active Probe for Precision Measurements

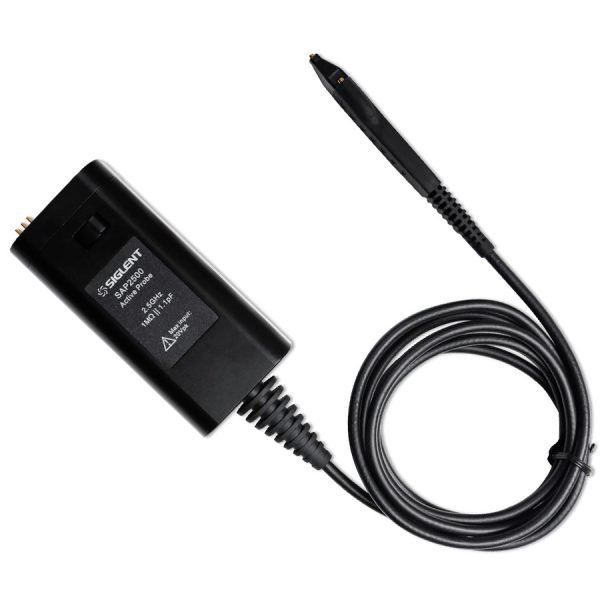

Features and Specifications Siglent SAP2500 Active Probe Product Overview The Siglent SAP2500 is a high-performance active probe designed for use with oscilloscopes. It features a single-ended SAPBus interface, a 10X attenuation ratio, a 2.5 GHz bandwidth, a 1.1 pF input capacitance, and a 1 MOhm input resistance. The SAP2500 is ideal for use in a wide variety of applications, including high-speed digital design, power electronics, and RF measurements. Features Single-ended SAPBus interface 10X attenuation ratio 2.5 GHz bandwidth 1.1 pF input capacitance 1 MOhm input resistance Low noise and distortion High accuracy and repeatability Compact and lightweight design Specifications Bandwidth: 2.5 GHz Attenuation ratio: 10X Input capacitance: 1.1 pF Input resistance: 1 MOhm Rise time: 140 ps Fall time: 140 ps Maximum input voltage: ±10 V Power supply: +5 V DC Dimensions: 110 mm x 30 mm x 15 mm Weight: 100 g What’s in the Box Siglent SAP2500 Active Probe Ground lead Calibration certificate Benefits The Siglent SAP2500 Active Probe offers a number of benefits over traditional passive probes, including: Higher bandwidth and faster rise time Lower input capacitance and input resistance Lower noise and distortion Higher accuracy and repeatability * These benefits make the SAP2500 ideal for use in a wide variety of applications, including high-speed digital design, power electronics, and RF measurements. Value The Siglent SAP2500 Active Probe is a valuable tool for any engineer or technician who needs to make accurate and repeatable measurements on high-speed signals. Its high performance and low price make it an excellent value for the money.
