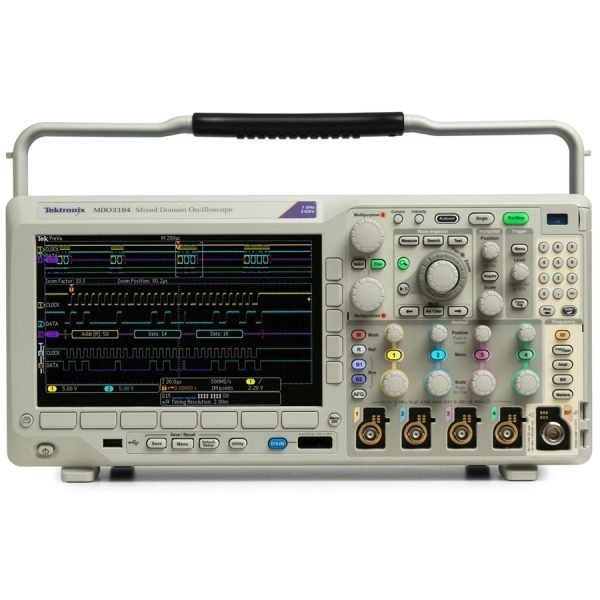

Tektronix MDO3012: The Ultimate Mixed Domain Oscilloscope for Precision Analysis

Tektronix MDO3012 Mixed Domain Oscilloscope: Unifying Time, Frequency, and Protocol Analysis The Tektronix MDO3012 Mixed Domain Oscilloscope (MSO) revolutionizes signal analysis by seamlessly integrating time, frequency, and protocol analysis into a single, intuitive platform. Product Specifications: 2/16 analog and digital channels 200MHz bandwidth 2.5 GS/s sample rate 10 Mpts memory depth Features and Benefits: Mixed Domain Analysis: Simultaneously capture and analyze analog, digital, and RF signals, providing a comprehensive view of complex systems. Spectrum View: Identify and characterize frequency components with the built-in spectrum analyzer, eliminating the need for separate instruments. Protocol Analysis: Decode and analyze over 100 protocols, including I2C, SPI, CAN, and Ethernet, simplifying debugging and troubleshooting. Wave Inspector Controls: Easily navigate and manipulate waveforms using intuitive touch controls, saving time and effort. Advanced Triggering: Capture elusive events with advanced triggering capabilities, including edge, pulse width, and protocol-specific triggers. Large Display: View waveforms and analysis results clearly on the 12.1-inch capacitive touchscreen display. Value to the Customer: The Tektronix MDO3012 MSO empowers engineers and technicians with: Increased Efficiency: Streamline troubleshooting and analysis by combining multiple instruments into one. Enhanced Accuracy: Gain a deeper understanding of signal behavior by correlating time, frequency, and protocol data. Reduced Time to Market: Accelerate product development and testing with faster debugging and validation. Improved Productivity: Simplify complex analysis tasks with intuitive controls and automated features. Invest in the Tektronix MDO3012 Mixed Domain Oscilloscope and unlock the power of unified signal analysis, empowering you to solve complex design challenges with confidence and efficiency.
