Tektronix P6243: Precision SMD Active Probe for High-Frequency Measurements

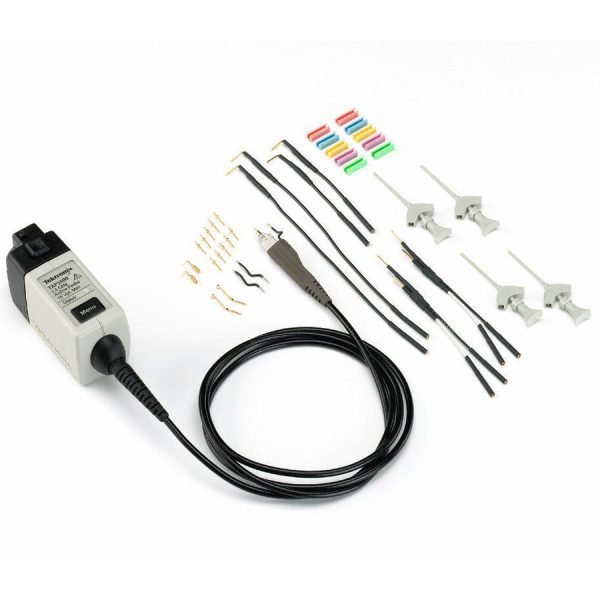

Features and Specifications Tektronix P6243 Active Probe for SMDs, Single-Ended TekProbe, 1 GHz, 10X Product Overview The Tektronix P6243 is an active probe designed for probing small surface-mount devices (SMDs). It features a 1 GHz bandwidth and a 10X attenuation ratio, making it ideal for high-speed signal measurements. The P6243 also has a small form factor and a flexible probe tip, making it easy to use in tight spaces. Features 1 GHz bandwidth 10X attenuation ratio Small form factor Flexible probe tip Ground lead included Specifications Bandwidth: 1 GHz Attenuation ratio: 10X Input impedance: 1 MΩ // 10 pF Output impedance: 50 Ω Rise time: 350 ps Maximum input voltage: ±10 V Probe tip: Flexible, 0.5 mm diameter Probe length: 12 inches Weight: 2 ounces What’s in the Box Tektronix P6243 Active Probe Ground lead User manual Benefits The Tektronix P6243 Active Probe is ideal for probing small surface-mount devices (SMDs). Its 1 GHz bandwidth and 10X attenuation ratio make it suitable for high-speed signal measurements. The small form factor and flexible probe tip make it easy to use in tight spaces. * The P6243 is a valuable tool for engineers and technicians who need to probe SMDs. Value The Tektronix P6243 Active Probe is a high-quality probe that is built to last. It is a valuable tool for engineers and technicians who need to probe SMDs. The P6243 is backed by Tektronix’s industry-leading warranty and support.
