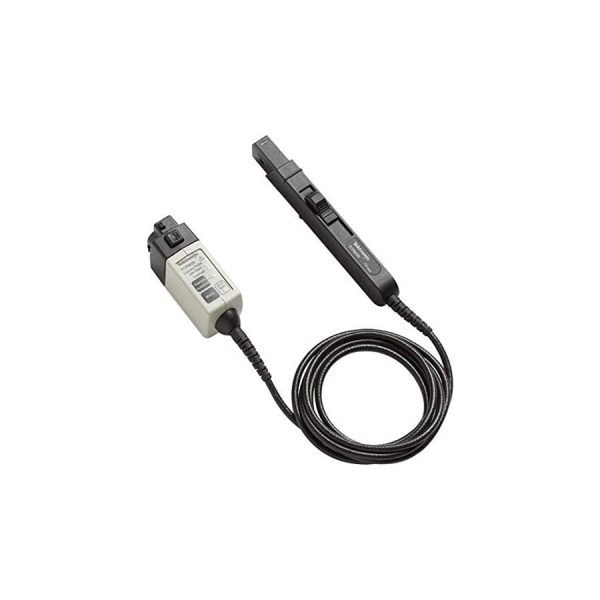

Tektronix TCP0020: Precision Current Probe for AC/DC Measurements

Features and Specifications: Tektronix TCP0020 Current Probe, AC/DC, 10 mA, 20 A, 50 MHz, 150 V, CAT2, 100 A, 2 m, TCP Series Product Overview: The Tektronix TCP0020 is a high-performance current probe designed for accurate and reliable current measurements in a wide range of applications. With its AC/DC coupling, wide measurement range, and high bandwidth, it is an ideal tool for engineers, technicians, and researchers in various industries. Features: AC/DC coupling for measuring both AC and DC currents Measurement range from 10 mA to 20 A (continuous) and up to 100 A (peak) High bandwidth of 50 MHz for capturing fast transients Maximum voltage rating of 150 V CAT2 Safety rating of CAT2 for use in low-energy electrical environments Compact and lightweight design for easy handling 2-meter cable length for extended reach Specifications: Measurement Range: 10 mA to 20 A (continuous), 100 A (peak) Bandwidth: 50 MHz Accuracy: ±1% of reading ±0.1 A Maximum Voltage: 150 V CAT2 Cable Length: 2 m Dimensions: 150 mm x 40 mm x 25 mm Weight: 200 g Benefits: Accurate and reliable current measurements for various applications Wide measurement range and high bandwidth for capturing a wide range of signals Safety rating for use in low-energy electrical environments Compact and lightweight design for easy handling and portability Extended cable length for increased flexibility Value to the Customer: The Tektronix TCP0020 Current Probe provides exceptional value to customers by offering: High-quality current measurements for accurate analysis and troubleshooting Versatility for use in a wide range of applications Safety and reliability for peace of mind Convenience and ease of use for increased productivity What’s in the Box: Tektronix TCP0020 Current Probe * User Manual
