Teledyne LeCroy T3HVD7000-100: High-Voltage Differential Probe for Precision Measurements

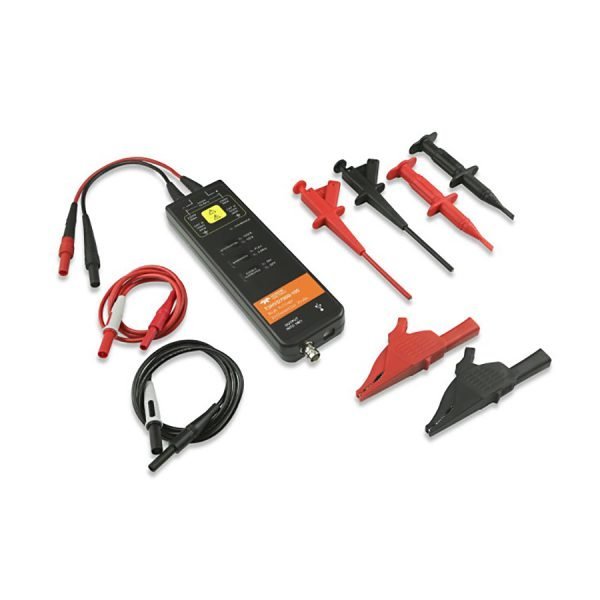

Features and Specifications Teledyne LeCroy T3HVD7000-100 High-Voltage Differential Probe Product Overview The Teledyne LeCroy T3HVD7000-100 High-Voltage Differential Probe is a high-performance probe designed for measuring high-voltage signals in a variety of applications. It offers a wide bandwidth of 100 MHz, a high input impedance of 40 MΩ, and a low input capacitance of 2.5 pF. The probe is also protected against overloads up to 7 kV, making it ideal for use in harsh environments. Features Bandwidth: 100 MHz Input impedance: 40 MΩ Input capacitance: 2.5 pF Overload protection: 7 kV Differential and single-ended measurements Ground reference compensation Auto-ranging Compact and lightweight Specifications Bandwidth: 100 MHz (-3 dB) Input impedance: 40 MΩ ±2% Input capacitance: 2.5 pF ±0.5 pF Overload protection: 7 kV (DC + peak AC) Common mode rejection ratio: >80 dB at 50 MHz Differential gain accuracy: ±1% Differential phase accuracy: ±1° Maximum input voltage: 7 kV (DC + peak AC) Operating temperature: 0°C to 50°C Storage temperature: -20°C to 70°C Dimensions: 150 mm x 50 mm x 25 mm Weight: 250 g What’s in the Box T3HVD7000-100 High-Voltage Differential Probe Ground lead Probe tip Carrying case Benefits High bandwidth and low input capacitance for accurate measurements of high-speed signals High input impedance for minimal loading of the circuit under test Overload protection for safe operation in harsh environments Differential and single-ended measurements for versatility Ground reference compensation for accurate measurements in noisy environments Auto-ranging for ease of use * Compact and lightweight for portability Value The Teledyne LeCroy T3HVD7000-100 High-Voltage Differential Probe is a valuable tool for engineers and technicians who need to measure high-voltage signals accurately and safely. Its high performance, versatility, and ease of use make it an ideal choice for a variety of applications.
