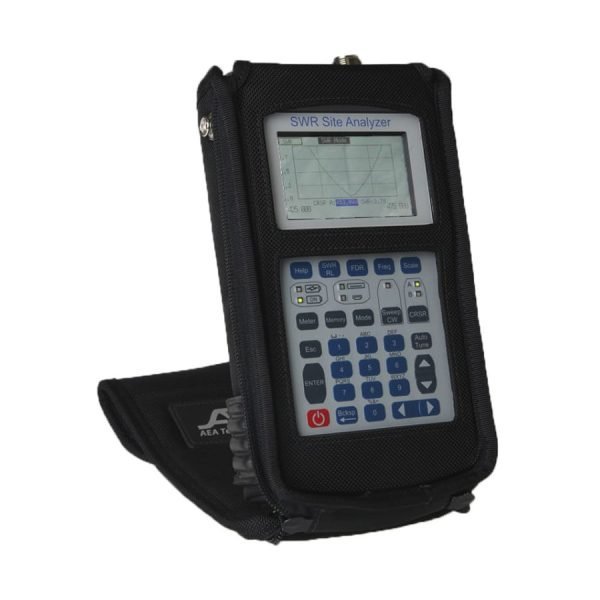

AEA 6050-5000 SWR Site Analyzer: Precision VSWR Measurement for Optimal RF Performance

Features and Specifications: AEA 6050-5000 SWR Site Analyzer, Single N Port with VSWR, Liberator RF, 100 kHz to 1.0 GHz Product Overview: The AEA 6050-5000 SWR Site Analyzer is a compact and portable instrument designed to measure VSWR (Voltage Standing Wave Ratio) and other RF parameters at cell sites and other RF installations. With its wide frequency range of 100 kHz to 1.0 GHz, it is suitable for a variety of applications, including antenna testing, cable and connector evaluation, and site maintenance. Features: Single N port for easy connection to antennas and cables Measures VSWR, return loss, and impedance Frequency range: 100 kHz to 1.0 GHz High accuracy and resolution Large, easy-to-read LCD display USB interface for data logging and remote control Compact and portable design Specifications: Frequency range: 100 kHz to 1.0 GHz VSWR range: 1.0 to 99.9 Return loss range: -50 to 0 dB Impedance range: 50 to 1000 ohms Accuracy: ±0.1 dB (VSWR), ±0.2 dB (return loss) Resolution: 0.01 dB (VSWR), 0.01 dB (return loss) Display: 128 x 64 pixel LCD USB interface: USB 2.0 Power supply: 9V battery or external power adapter Dimensions: 120 x 70 x 30 mm Weight: 250g What’s in the Box: AEA 6050-5000 SWR Site Analyzer N-type to N-type adapter USB cable 9V battery User manual Benefits: Accurately measure VSWR and other RF parameters Identify and troubleshoot antenna and cable problems Ensure optimal RF performance at cell sites Compact and portable for easy field use USB interface for data logging and remote control Value to the Customer: The AEA 6050-5000 SWR Site Analyzer is an essential tool for anyone involved in the installation, maintenance, or troubleshooting of RF systems. Its high accuracy, wide frequency range, and compact design make it an ideal choice for a variety of applications. By providing accurate and reliable measurements, the AEA 6050-5000 SWR Site Analyzer helps ensure optimal RF performance and minimizes downtime.
