Instek LCR-15A: Precision SMD/Chip Test Fixture for LCR-6000/8200 Series

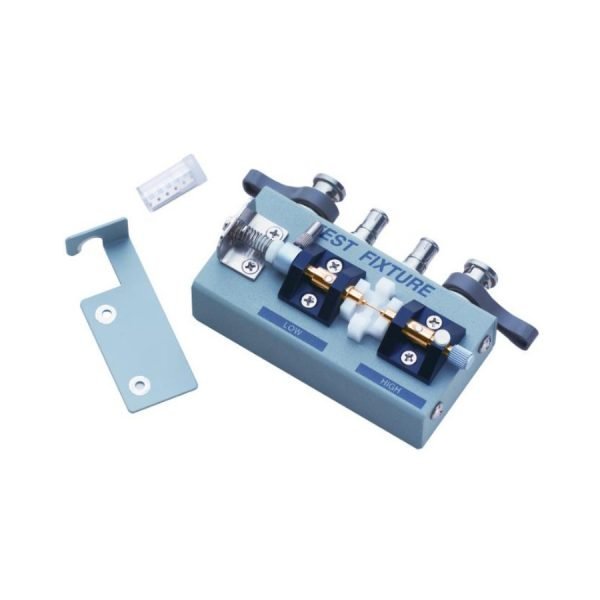

Features and Specifications Instek LCR-15A Test Leads SMD / Chip Test Fixture, 30 MHz, For LCR-6000 and LCR-8200 Series Product Overview The Instek LCR-15A Test Leads SMD / Chip Test Fixture is a high-performance test fixture designed for testing surface-mount devices (SMDs) and chip components. It is compatible with Instek’s LCR-6000 and LCR-8200 series LCR meters, providing accurate and reliable measurements of inductance, capacitance, and resistance. Features Wide frequency range: 20 Hz to 30 MHz High accuracy: ±0.1% basic accuracy Low test current: 100 μA to 10 mA Test voltage: 0.5 V to 5 V Four-terminal Kelvin connection Compact and lightweight design Specifications Frequency range: 20 Hz to 30 MHz Accuracy: ±0.1% basic accuracy Test current: 100 μA to 10 mA Test voltage: 0.5 V to 5 V Dimensions: 100 mm x 60 mm x 20 mm Weight: 100 g What’s in the Box LCR-15A Test Leads SMD / Chip Test Fixture User manual Benefits Accurate and reliable measurements of SMDs and chip components Wide frequency range for testing a variety of devices Low test current and voltage for sensitive components Four-terminal Kelvin connection for high accuracy Compact and lightweight design for easy handling Value to the Customer The Instek LCR-15A Test Leads SMD / Chip Test Fixture is an essential tool for engineers and technicians who need to test SMDs and chip components. It provides accurate and reliable measurements, making it ideal for a wide range of applications, including: Component characterization Quality control Failure analysis * Research and development
