Instek MSO-2204EA: The Ultimate Mixed Signal Oscilloscope for Precision Analysis

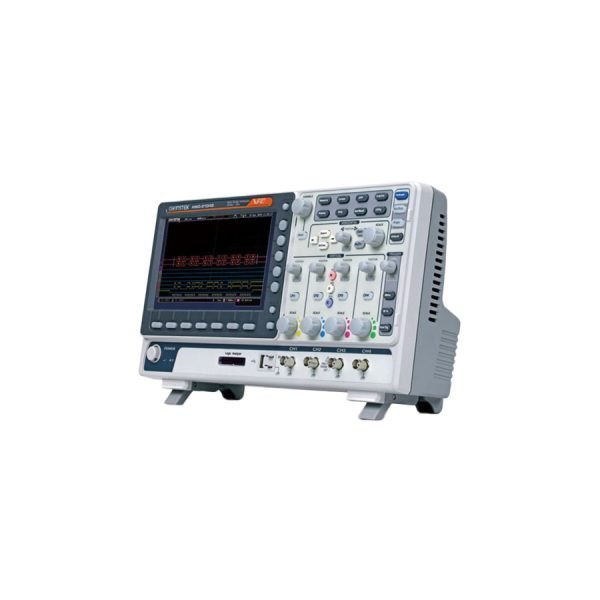

Instek MSO-2204EA Mixed Signal Oscilloscope, AWG, 4/16 CH, 200 MHz, 10 Mpts, 1 GS/s, MSO-2000EA Series Product Overview: The Instek MSO-2204EA is a versatile and powerful mixed signal oscilloscope (MSO) that combines the functionality of an oscilloscope, arbitrary waveform generator (AWG), and logic analyzer. With its 4 analog channels, 16 digital channels, 200 MHz bandwidth, 10 Mpts memory depth, and 1 GS/s sampling rate, the MSO-2204EA is ideal for a wide range of applications in electronics, telecommunications, and other industries. Features and Specifications: 4 analog channels with 200 MHz bandwidth 16 digital channels with 100 MHz bandwidth 10 Mpts memory depth per channel 1 GS/s sampling rate Built-in AWG with 2 channels and 100 MHz bandwidth 16-bit resolution for AWG Advanced triggering capabilities, including edge, pulse width, and logic triggering Comprehensive measurement functions, including time, frequency, voltage, and power Large 10.1-inch capacitive touchscreen display USB, LAN, and GPIB interfaces What’s in the Box: Instek MSO-2204EA MSO 4 passive probes 16 digital probes AWG cable USB cable LAN cable GPIB cable Power cord User manual Benefits: Versatile and powerful: The MSO-2204EA combines the functionality of an oscilloscope, AWG, and logic analyzer in a single instrument, making it ideal for a wide range of applications. High performance: With its 200 MHz bandwidth, 10 Mpts memory depth, and 1 GS/s sampling rate, the MSO-2204EA provides excellent signal acquisition and analysis capabilities. Easy to use: The large touchscreen display and intuitive user interface make the MSO-2204EA easy to operate, even for beginners.* Excellent value: The MSO-2204EA offers a comprehensive set of features and capabilities at an affordable price, making it an excellent value for the money. Value to the Customer: The Instek MSO-2204EA is an essential tool for engineers, technicians, and students who need a versatile and powerful mixed signal oscilloscope. Its combination of features, performance, and value make it an excellent choice for a wide range of applications.
